COMPACTORS

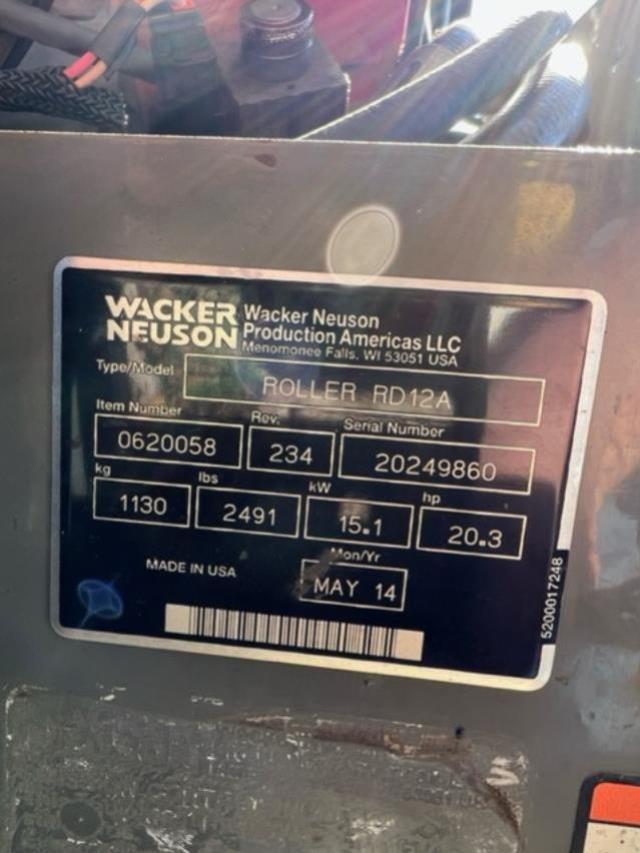

ROLLER, ASPHAULT VIBRATORY RD12


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

4 Hour: $140.00

Daily: $235.00

Weekly: $890.00

Monthly: $2,600.00

Quantity: for a period of
4 hour(s) day(s) week(s) month(s)

Additional Information

WEIGHT= 2900 LBS
RD12A-90
Operating data
Operating weight w/ operator 1,130 kg
L x W x H 1,824 x 1,035 x 2,300 mm
Drum width 900 mm
Drum diameter 560 mm
Side clearance right 44 mm
Side clearance left 89 mm
Curb clearance right 399 mm
Curb clearance left 208 mm
Centrifugal force dynamic (front drum) 15 kN
Frequency 70 Hz
Linear force - front / rear static 4.9 / 7.2 N/mm
Linear force dynamic (front) 16.8 N/mm
Travel speed forward 8.7 km/h
Travel speed reverse 8.7 km/h
Surface capacity area 7,830 m /h
Gradeability max. (w/ and w/o vibration) 30 %
Gradeability limit (engine) 32 %
Turning radius outside 2,451 mm
Engine / Motor
Engine / Motor type air-cooled, 2-cylinder, gasoline engine
Engine / Motor manufacturer Honda GX 630
Displacement 688 cm
Operating performance max. rated at 3600 rpm 15.1 kW
RPM / speed operating speed 3,100 rpm
Fuel consumption 6 l/h
Filling capacities
Tank capacity fuel 23 l
Tank capacity water 100 l
